VW, Audi, Škoda and SEAT Harman MMI navigation units on workbench prepared for diagnostics and electronic repair

VW, Audi, Škoda & SEAT Harman MIB / MMI Navigation Sound Repair

MIB · MIB2 · MIB2.5

No sound, intermittent sound, cooling fan running constantly, or battery drain?

We repair common audio-related faults in Harman MIB navigation and multimedia units fitted to VW, Audi, Škoda and SEAT vehicles.

If the screen still works but the sound disappears, cuts out or stops once the unit gets warm, the fault may be inside the multimedia unit.

Get a repair quote

Typical repair cost: €150

  • Original unit repaired

  • Tested before return

  • No coding normally needed

  • 2-year guarantee

  • Mail-in service

Does this sound familiar?

  • These faults often start intermittently and get worse over time:

    • Volume cuts in and out
    • No sound at all
    • Audio turns off randomly
    • Sound stops when the unit gets warm
    • Blown fuses
    • Cooling fan runs constantly
    • Battery drain while parked

  • In many cases, the screen, navigation and touchscreen continue to work normally. This can make the fault look like a speaker, wiring or software problem when the issue is inside the multimedia unit.

First, check if this repair is right for your car

This service is mainly for cars with the Basic Sound System, where the amplifier is built into the MIB unit. Cars with a separate amplifier may need a different repair route.

1. Look for an external amplifier

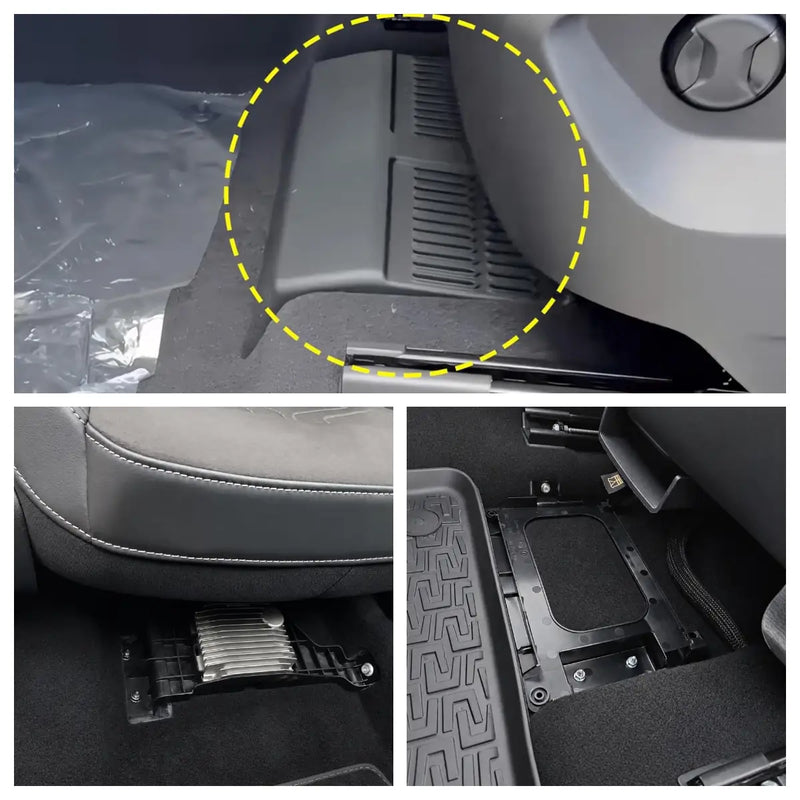

MIB external amplifier location under the seat in VW, Audi, Škoda and SEAT vehicles

Cars with the Basic Sound System do not have a separate amplifier. The amplifier is built into the MIB unit. If your car has an external amplifier, it is commonly found:

  • under one of the front seats
  • behind the side trim in the boot

Please note: The location can vary between models.

2. Look at the rear connectors

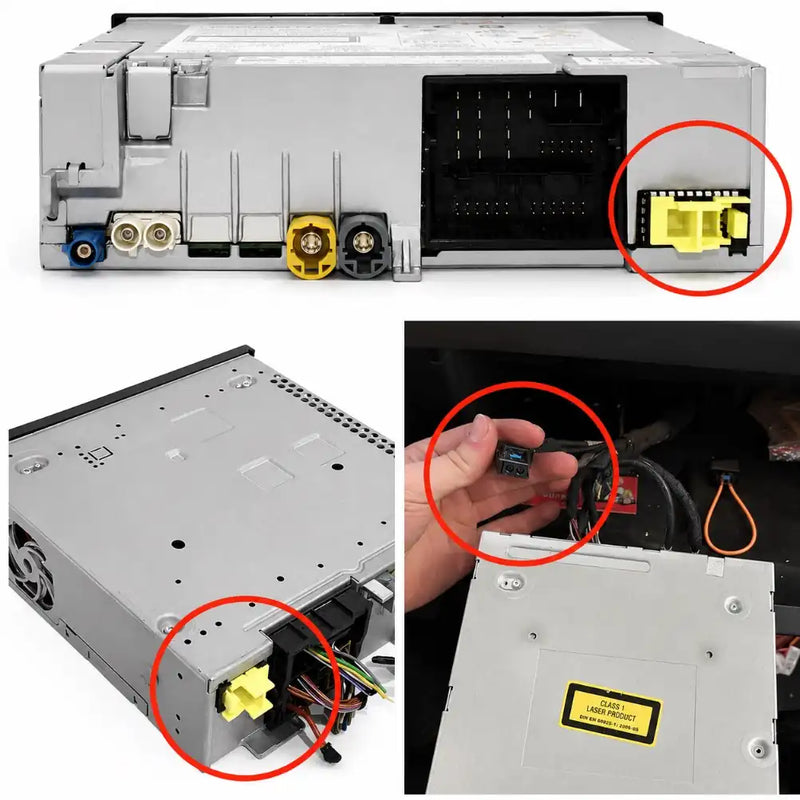

Rear of a VW Audi Harman MIB unit showing the optical fibre (MOST) connector used on vehicles with an external amplifier.

Remove the MIB unit and look at the connectors on the back. If there are no optical fibre (MOST) cables connected, your car will usually have the Basic Sound System, where the amplifier is built into the MIB unit. This is the type of unit we repair.

If you see optical fibre cables, your vehicle most likely has a separate amplifier, so this repair may not be the right solution.

Check if your unit is suitable

Send us your vehicle details, a description of the fault, and clear photos of the unit label and rear connectors. We will check whether this repair is likely to be suitable before you send the unit.

Check my unit

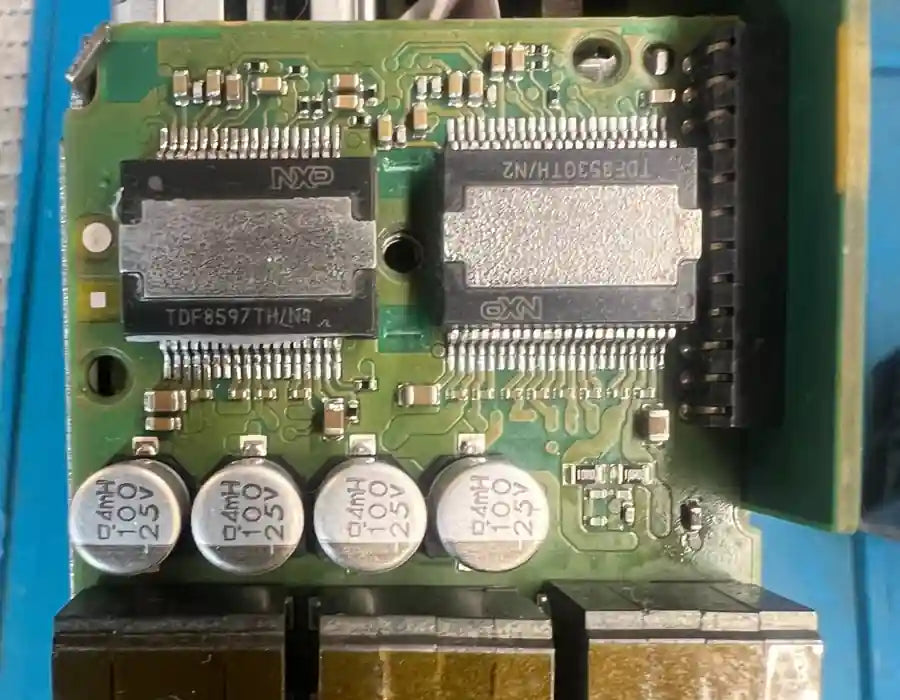

VW Audi Harman MMI amplifier IC chips showing thermal stress during multimedia repair process

Usually a hardware fault, not a software issue

Inside affected Harman MIB units, heat, vibration and age can affect the audio and power-related areas of the circuit board.

The faults we commonly find involve:

  • Weak or cracked solder connections
  • Heat-stressed power-related components
  • Internal amplifier-section faults
  • Unstable power delivery to the audio circuit

This can cause intermittent sound, complete audio loss, amplifier shutdown, constant fan operation or battery drain.

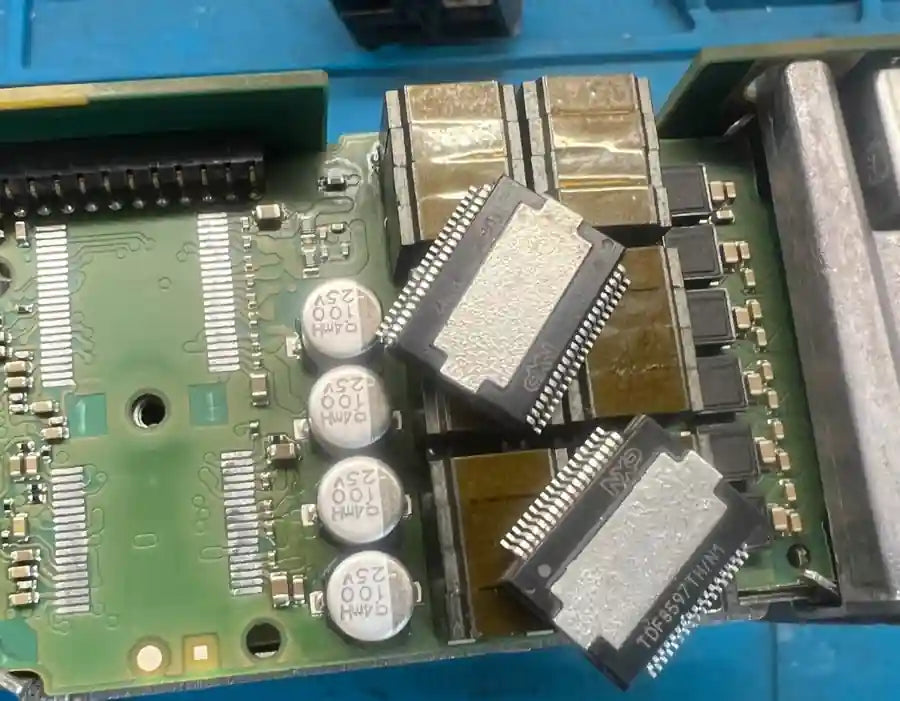

VW Audi Harman MMI TDF8597 amplifier chips removed from PCB during navigation unit repair

Why repair your original unit?

A used replacement may look like the easy option, but it can have the same age-related weaknesses and unknown history. A new replacement can also be expensive and may require compatibility checks.

Repairing your original unit means:

  • Your original VIN-matched unit stays with the car
  • No coding or programming is normally needed after repair
  • Avoids the uncertainty of fitting an unknown used replacement.
  • Can cost less than a new replacement
  • Your original dashboard and factory system stay intact

We inspect the unit, repair confirmed faults and reinforce relevant weak points where appropriate.

  • How the repair works

    1. Send us the vehicle details, fault description, part number and photos if possible.
    2. We check whether the unit and fault look suitable for this repair.
    3. You send only the multimedia/navigation unit.
    4. We inspect, repair and test the unit under load and heat conditions.
    5. We return it ready to reinstall.

    Final diagnosis is only possible after internal inspection. If there is corrosion, liquid damage, previous repair work or more than one fault, we will contact you before any additional work.

    For shipping and repair information, see our How It Works page.

  • What this service covers

    We repair Harman-based factory navigation and multimedia units, including:

    • VW, Audi, Škoda and SEAT MMI navigation systems
    • MIB, MIB2 and MIB2.5 platforms
    • Discover Media systems

    If you have ghost touches, poor touch response or an unresponsive screen rather than an audio fault, see our VW / Škoda / SEAT MIB2 Touch Screen Repair service.

    For non-multimedia standalone head units, see Modern Car Radio Repair.

    For older factory radios, see Classic / Vintage Car Radio Repair.

Supported part numbers

We repair many versions beyond this list. If yours is not shown, send us a photo of the label.

Volkswagen

  • 5G0 035 020 / A / B / C / D / E
  • 3G0 035 043 / A / B / C / D / E
  • 5G0 035 043 / A / B / C / D / E
  • 5G0 035 021 / A / B
  • 5NA 035 042 / A / C / D / E
  • 5G0 035 050 / A

Audi

  • 8V0 035 020 / B / C
  • 8V0 035 021 / A
  • 8V0 035 043 / A / B
  • 8V0 035 044

Škoda

  • 3V0 035 020 / A / B / C / D / E
  • 5E0 035 020 / A / B / C / D / E
  • 565 035 021 / A / B / C / D / E

Frequently asked questions

Will the unit need coding after repair?

Normally no, because your original unit stays with the car. Tell us first if the unit has been replaced or modified before.

What if my car has an external amplifier?

Send us photos of the rear connectors and details of the sound system. This repair is mainly for Basic Sound System cars where the amplifier is built into the MIB unit.

What if the unit is not worth repairing?

We will contact you before any additional work is carried out.

Do you accept units from outside Lithuania?

Yes. We accept mail-in repairs from customers worldwide.
